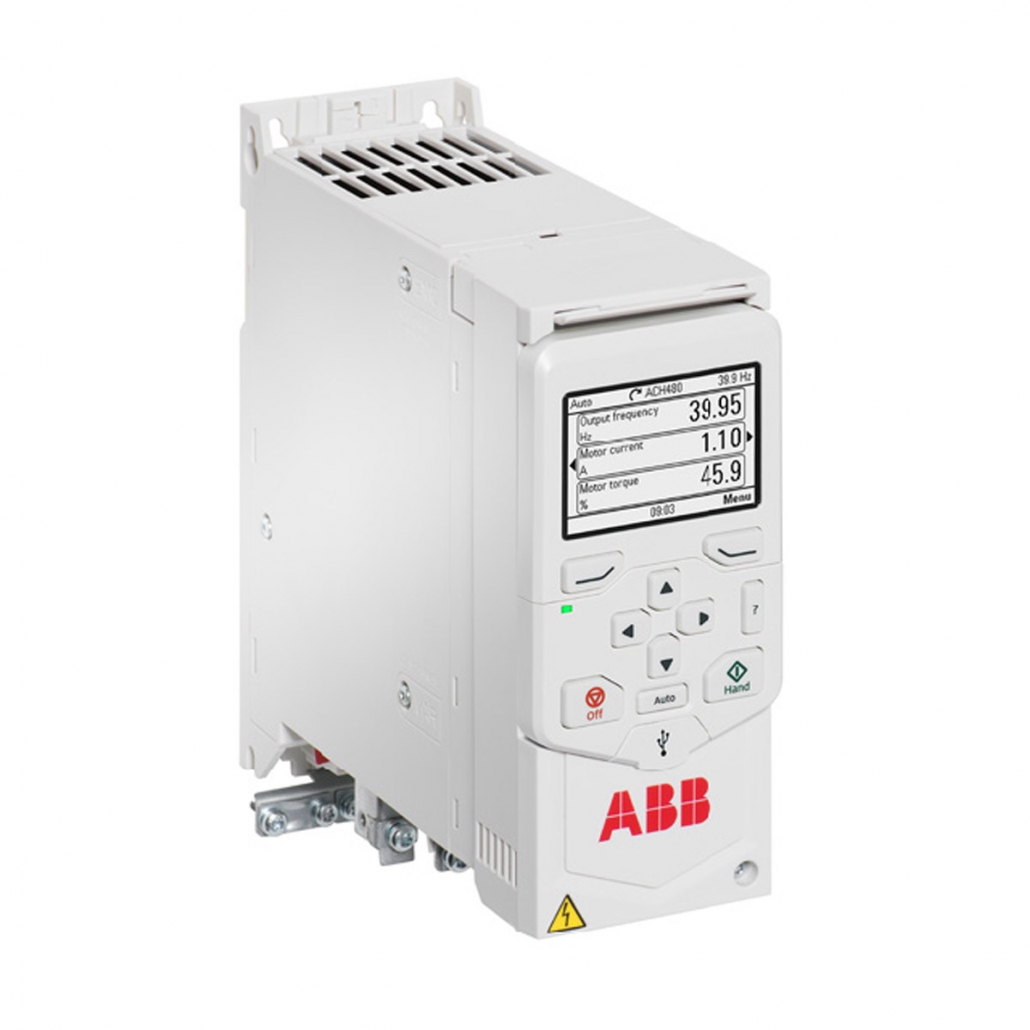

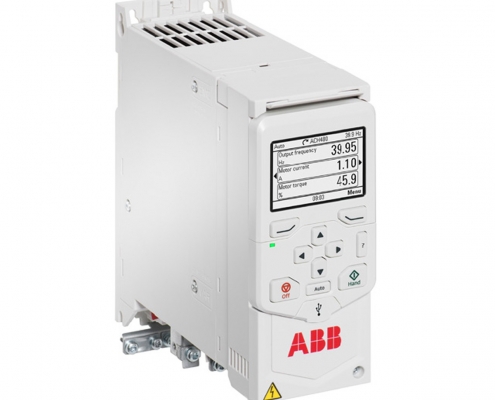

Despite its small size, the ACH480 drive has complete functionality for controlling fans, pumps, compressors, and more complex HVAC equipment like air-handling units.
While the built-in features significantly reduce installation time, the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy.
The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance.
Product features, such as coated boards, earth fault protection, undervoltage control, and the ability to operate at an ambient temperature of 50 °C without derating, ensure process reliability. Every drive is tested, verifying its performance and all protective functions.
Easy to select, install and use
75 to 22 kW, 380 to 480 V
Cabinet-optimized, IP20 as standard
Wall and Cabinet Fixed
Uniform enclosure height and depth in all power sizes
DIN-rail and screw mounting
Zero side clearance
Easy to select, install, commission and use
HVAC-specific features integrated as standard
Intuitive control panel with optional Bluetooth capability for better accessibility
Various languages and communications built inside
Reliable connectivity with major automation and control systems
Control of a wide range of motors for any HVAC application
